FEVI Sabix 8 & Airmec TTS 3465/550 Sandblasting Package
-
Adjustable blasting pressure for controlled cleaning and surface preparation.
Compact 8-litre blast pot with a wheeled base.
Remote-control blasting gun with adjustable abrasive delivery.
Petrol-powered compressor with a 6.5 hp engine and recoil start.
Twin air receivers providing 34 litres of combined storage.
Pneumatic compressor wheels and handling frame.
Condensate separator to help reduce moisture-related abrasive blockages.
UK advice, finance options and ongoing support through CoolBlast.
-

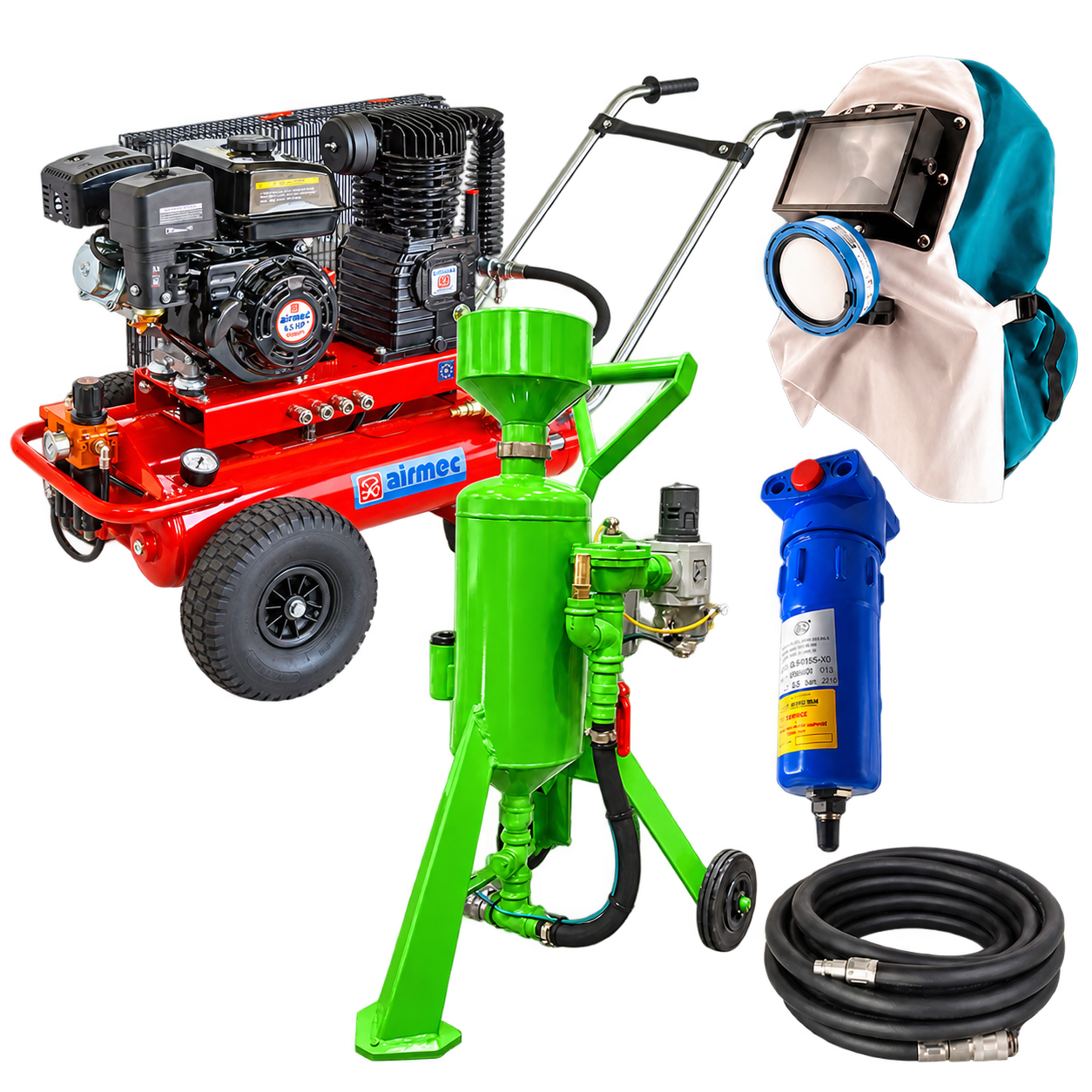

FEVI Sabix 8 Base sandblasting machine, complete with blasting gun, 3 mm tungsten carbide nozzle, 5-metre blasting hose and remote control.

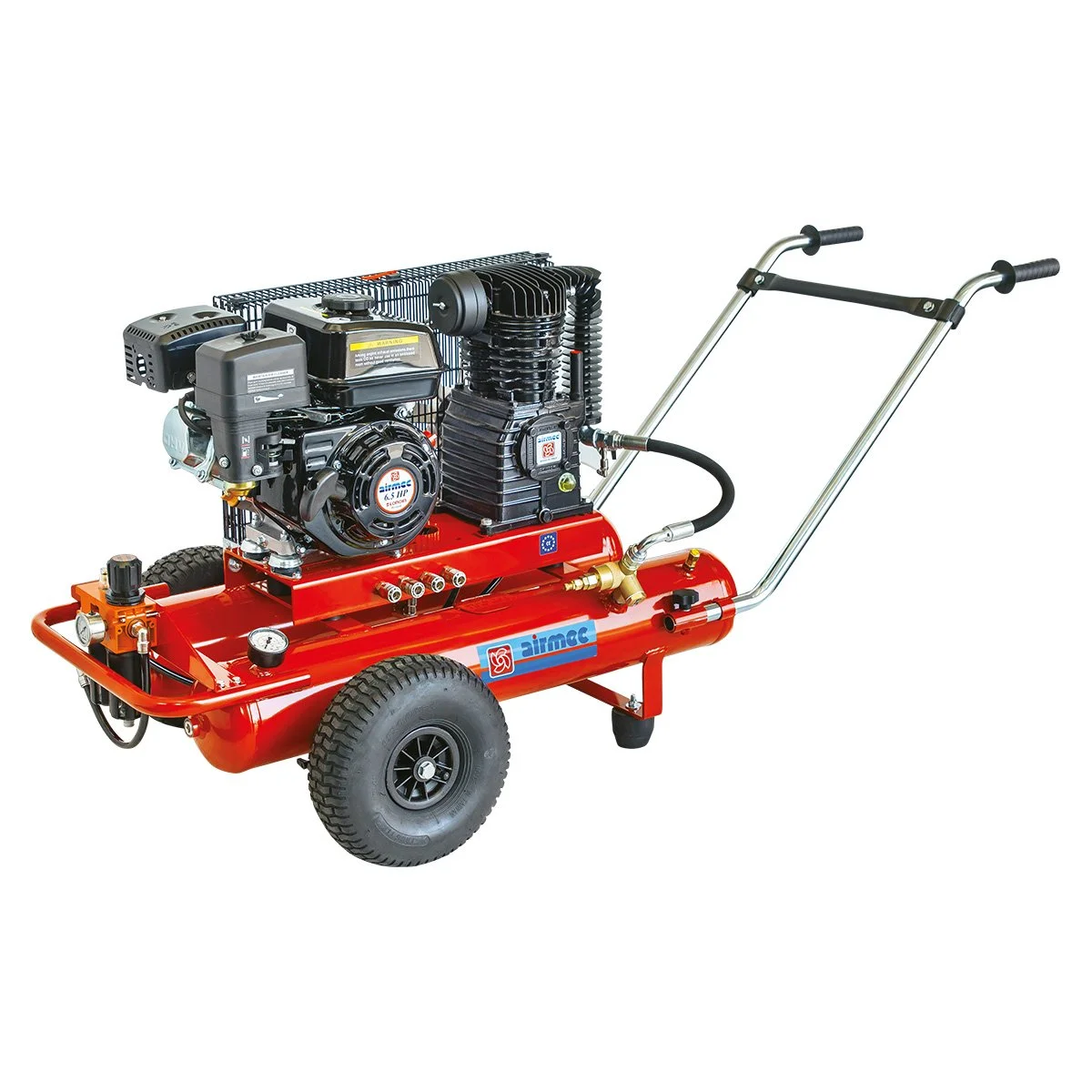

Airmec TTS 3465/550 portable petrol compressor, with recoil start and twin air receivers.
10-metre compressed air supply hose.
Condensate separator filter with filter cartridge – removes condensed water and particles from the compressed air supply, helping prevent abrasive clogging and maintain consistent blasting performance.
RC4 sandblasting respirator mask – lightweight design with a shoulder-length protective hood, replaceable scratch-resistant visor and twin dust filters.
One replacement RC4 filter.
-
Sabix 8 VR Upgrade
Choose the VR version for greater control when using very fine abrasives. It adds a pneumatic tank vibrator and precision pneumatic abrasive mixing system, making it particularly useful for detailed restoration and microblasting.
Acquablast Humidification Kit
Introduces a controlled amount of water into the blasting stream to reduce airborne dust and improve visibility. A useful addition for restoration, site work and surface preparation where dust reduction is a priority.
-
Localised paint and coating removal from suitable timber and beams.
Controlled cleaning of stone, brickwork and masonry.
Rust removal from smaller metal components.
Furniture, doors and architectural details.
Smaller restoration projects and intermittent surface preparation.
-
The SABIX 8 Base and VR can use the following mineral abrasives. Maximum grain size: 0.5 mm / 500 microns.
Garnet 80 mesh – general rust, paint and coating removal on suitable metal and robust surfaces. Specify a grade with no particles exceeding 0.5 mm.
Garnet 120 mesh, approximately 0.08–0.18 mm – finer, more controlled cleaning and surface preparation. Fine garnet remains a hard, cutting abrasive.
Fine crushed glass, 0.2–0.5 mm – general rust, paint and coating removal, including selected work on sound brick and stone following a successful trial.
Brown aluminium oxide 70 mesh, approximately 0.18–0.25 mm – stronger cutting action for corrosion, resistant coatings and metal surface preparation.
Glass bead, 100–200 microns / 0.10–0.20 mm – cleaning and producing a uniform satin finish on suitable aluminium, stainless steel and other metal components.
Calcium carbonate Fine Grade 4 – gentler cleaning of suitable stone, masonry and timber. The quoted mean grain size is approximately 0.235 mm; confirm that the maximum particle size does not exceed 0.5 mm.
Additional abrasives for SABIX 8 VR
Specify the VR version for:
Sodium bicarbonate – selected light coatings, deposits and sensitive component cleaning.
Ground corn cob – suitable timber, old finishes and restoration cleaning.
Ground walnut shell – carbon deposits, moulds and selected component or timber cleaning.
These softer media are not included in our recommended range for the Base. Use purpose-made fine blasting grades within the 0.5 mm limit, with the exact grade confirmed before ordering.
Keep abrasives clean, dry and free flowing. Always test the abrasive, pressure and technique on a small area before treating the full surface.
-
FEVI Sabix 8
Abrasive capacity: 8 litres.
Operating pressure: 0.5–7.8 bar.
Air consumption: approximately 550 litres/minute / 19.4 CFM at 7 bar.
Nozzle: 3 × 60 mm divergent tungsten carbide.
Blasting hose: 5 metres.
Weight: 25 kg.
Airmec TTS 3465/550
Compressor type: single-stage, twin-cylinder piston.
Compressor head: K18/C.
Published airflow: 550 litres/minute / approximately 19.4 CFM.*
Maximum pressure: 11 bar.
Engine: 6.5 hp four-stroke petrol.
Starting: recoil pull start.
Receiver capacity: 2 × 17 litres.
Pump speed: 1,350 rpm.
Weight: 91 kg.
Dimensions: 1,150 × 751 × 875 mm.
Published airflow is not confirmed as free air delivery at working pressure. Sustainable blasting pressure depends on actual delivered airflow, nozzle condition, hose restrictions and compressor duty cycle.
-
