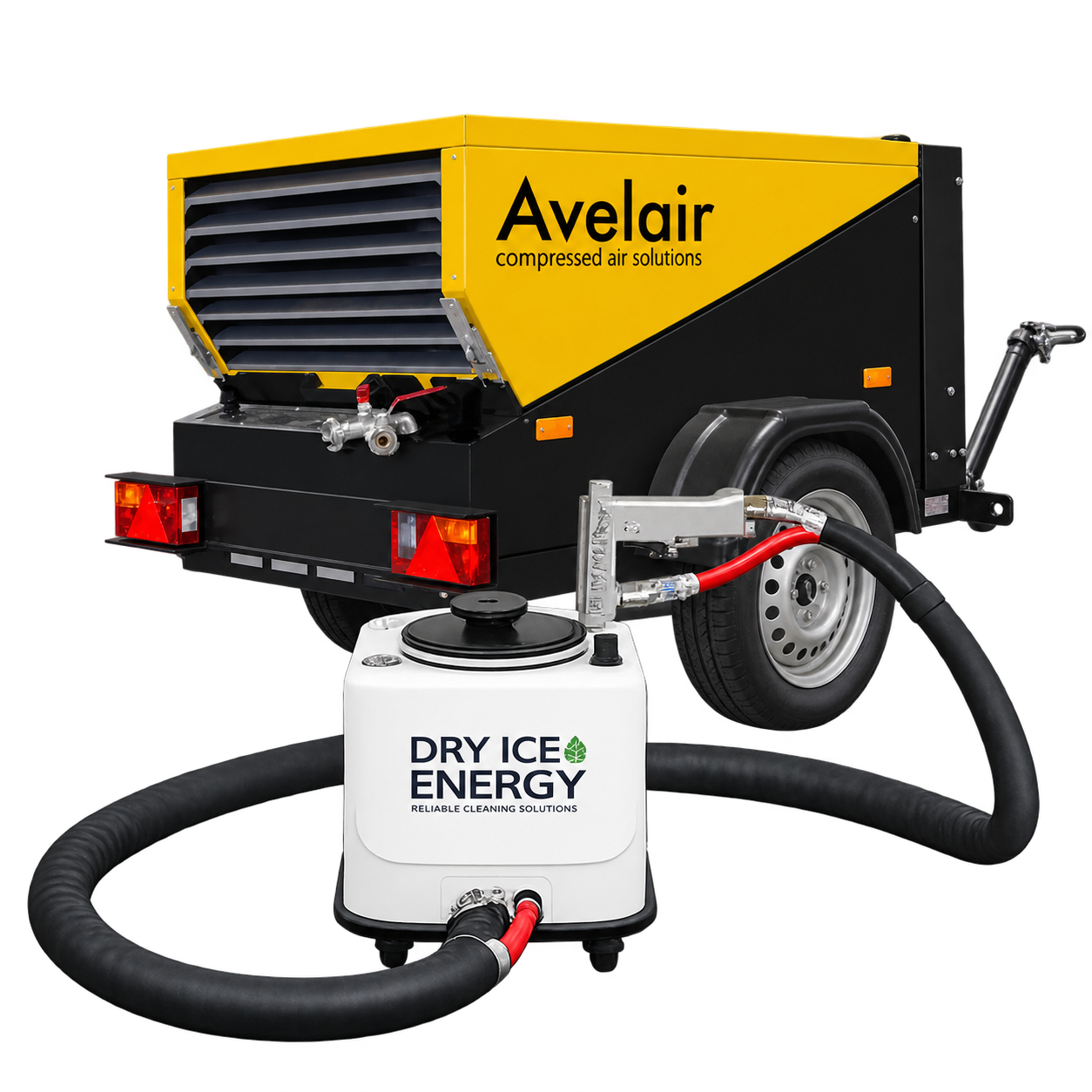

Champ Vario & Avelair AP2000 Dry Ice Blasting Package

• Professional dry ice cleaning package with a matched diesel compressor

• AP2000 delivers 74 CFM at 7 bar and 64 CFM at 10 bar

• Lightweight 13 kg Champ Vario for easy handling

• Blasting pressure adjustable from 2–10 bar

• Variable dry ice feed for precise cleaning control

• Aftercooler and water separator included in this package

• Kubota Stage V diesel engine

• No mains electrical supply needed

• Compatible with 1.5 mm mini pellets and 3 mm dry ice pellets

• Skid-mounted and axle-mounted compressor configurations available

• UK advice, finance options and ongoing support through CoolBlast

• Dry Ice Energy Champ Vario dry ice blasting machine

• Avelair AP2000 mobile diesel compressor 64 CFM @ 10 bar

• Compressor aftercooler and water separator

• Blasting gun with airflow adjustment

• 3 m detachable blasting hose

• 7 m compressed air hose with safety coupling

• Round blasting nozzle

• Integrated pressure regulator and gauge

• Adjustable dry ice dosing system

• Ice shovel

• Operating manuals

• Automotive detailing and engine bay cleaning

• Vehicle restoration and underbody cleaning

• Manufacturing equipment maintenance

• Injection mould and tooling cleaning

• Printing machinery

• Food production and packaging equipment

• Restoration cleaning on suitable surfaces

• General industrial maintenance

• Automotive detailing and engine bay cleaning

• Vehicle restoration and underbody cleaning

• Manufacturing equipment maintenance

• Injection mould and tooling cleaning

• Printing machinery

• Food production and packaging equipment

• Restoration cleaning on suitable surfaces

• General industrial maintenance

Technical Data

Dry Ice Energy Champ Vario

• Operating pressure: 2–10 bar

• Air consumption: approximately 11–53 CFM (300–1,500 litres/minute), depending on nozzle and pressure

• Dry ice consumption: 4–38 kg/hour, depending on settings and pellet size

• Hopper capacity: 3 litres

• Optional hopper extension: increases capacity to 6 litres

• Pellet compatibility: 1.5 mm and 3 mm dry ice pellets

• Adjustable dry ice delivery

• Pneumatic operation: no electrical connection required

• Machine weight: 13 kg

• Dimensions (L × W × H): 520 × 330 × 360 mm

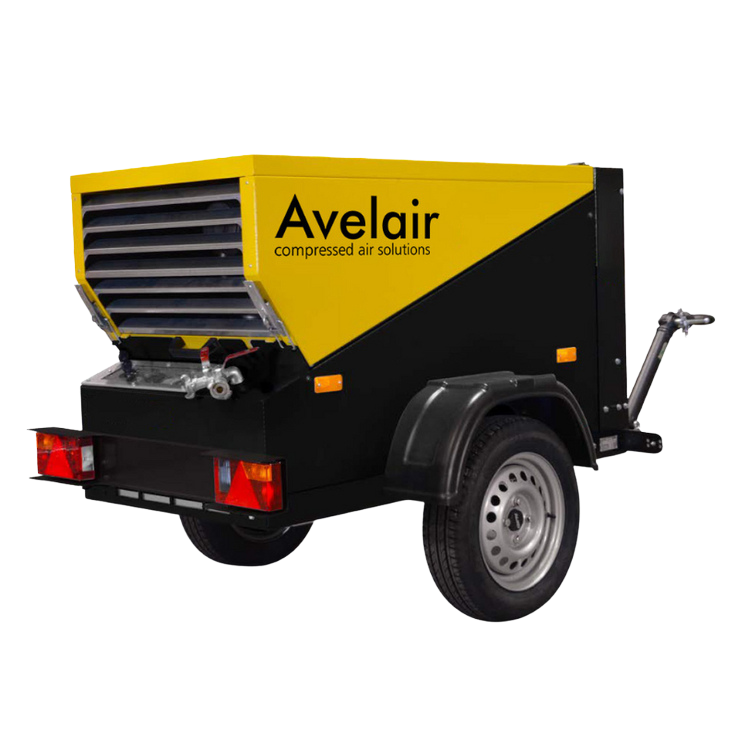

Avelair AP2000 Mobile Diesel Compressor

• Air delivery at 7 bar: 74 CFM

• Air delivery at 8.5 bar: 67 CFM

• Air delivery at 10 bar: 64 CFM

• Maximum operating pressure: 10 bar

• Engine: Kubota D1105 Stage V, three-cylinder diesel

• Engine power: 13 kW / 17.4 hp

• Fuel tank capacity: 40 litres

• Fuel consumption: approximately 4.4 litres/hour at full load

• Starting: electric

• Air outlets: 2 × ½ inch

• Configuration: skid mounted or axle mounted

• Weight: 458 kg skid mounted; 533 kg axle mounted

• Skid-mounted dimensions (L × W × H): 1,550 × 760 × 970 mm

• Air treatment: aftercooler and water separator included in this package
