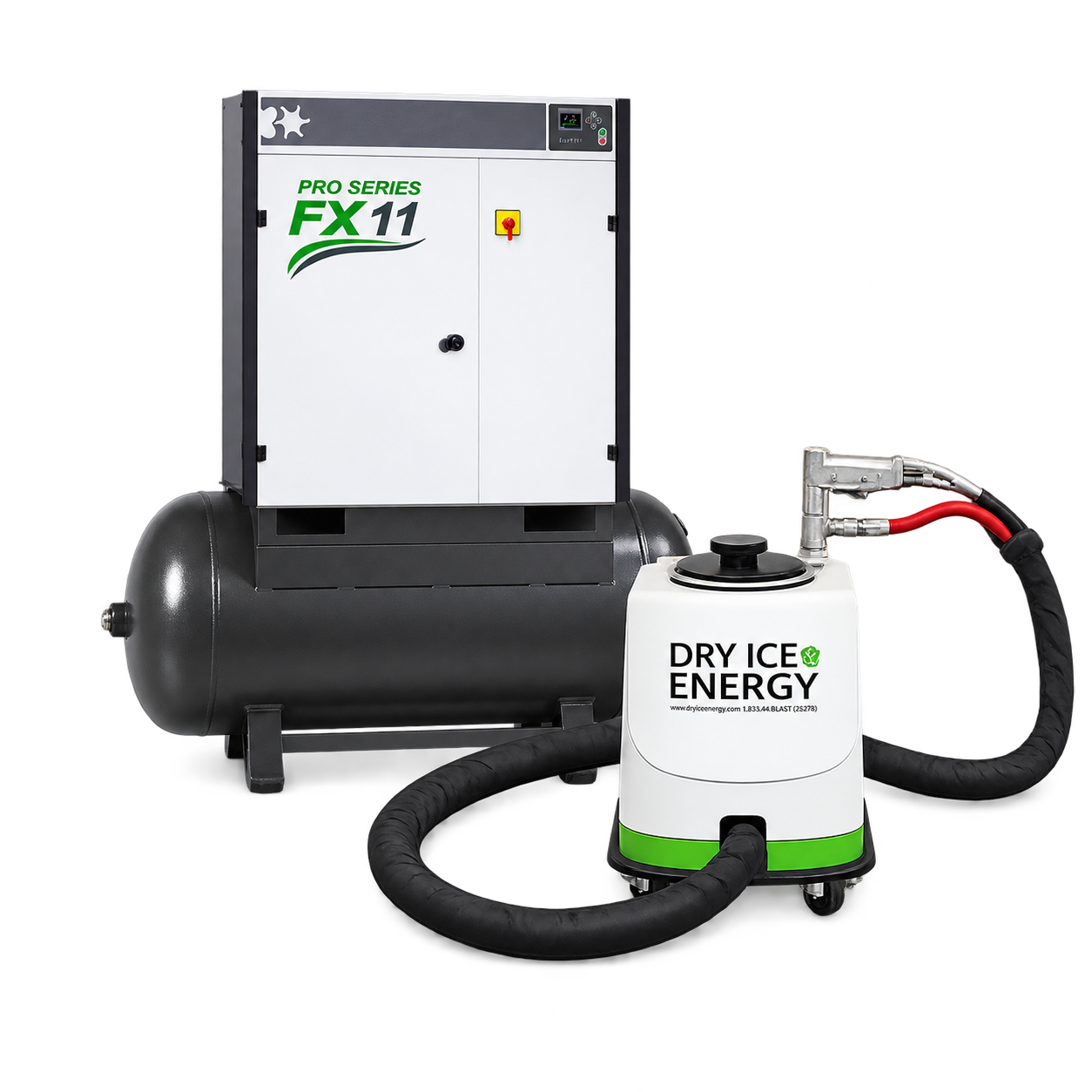

Champ Turbo & Avelair FX11-RM Dry Ice Blasting Package

• Professional dry ice blasting package combining the Champ Turbo with an Avelair electric screw compressor

• Compressor delivers 56 CFM at 10 bar

• Fixed-speed 11 kW motor for a permanent workshop installation

• 270-litre receiver provides compressed air storage

• Separate refrigerant dryer and two-stage filtration included

• Adjustable blasting pressure and dry ice dosing for control across different cleaning tasks

• Timed automatic receiver drain

• Dry ice cleaning without water or added cleaning chemicals

• Avelair compressor warranty includes two years’ parts and 12 months’ labour

• UK advice, spare parts and finance options through CoolBlast

• Dry Ice Energy Champ Turbo dry ice blasting machine

• Avelair Pro Series FX11-RM 11 kW fixed-speed rotary screw compressor

• 270-litre air receiver

• Refrigerant dryer with two-stage filtration, supplied separately

• Blasting gun

• 7.5 m blasting hose

• 10 m compressed air hose with safety couplings

• Round blasting nozzle

• Pressure regulator and gauge

• Dry ice dosing system

• Ice shovel

• Operating manuals

• Automotive detailing and engine bay cleaning

• Vehicle restoration and underbody cleaning

• Workshop machinery maintenance

• Production equipment cleaning

• Injection mould and tooling cleaning

• Printing equipment

• Food production and packaging machinery

• General industrial cleaning

Dry Ice Energy Champ Turbo

• Operating pressure: 1–10 bar

• Air consumption: approximately 17–57 CFM (500–1,600 litres/minute), depending on nozzle and pressure

• Dry ice consumption: 7–27 kg/hour, depending on settings and pellet size

• Dry ice hopper capacity: 4.1 kg

• Blasting media: dry ice pellets up to 2 mm

• Power: pneumatic operation; no electrical connection required for the blasting machine

• Machine weight: 17 kg

• Dimensions (L × W × H): 530 × 370 × 470 mm

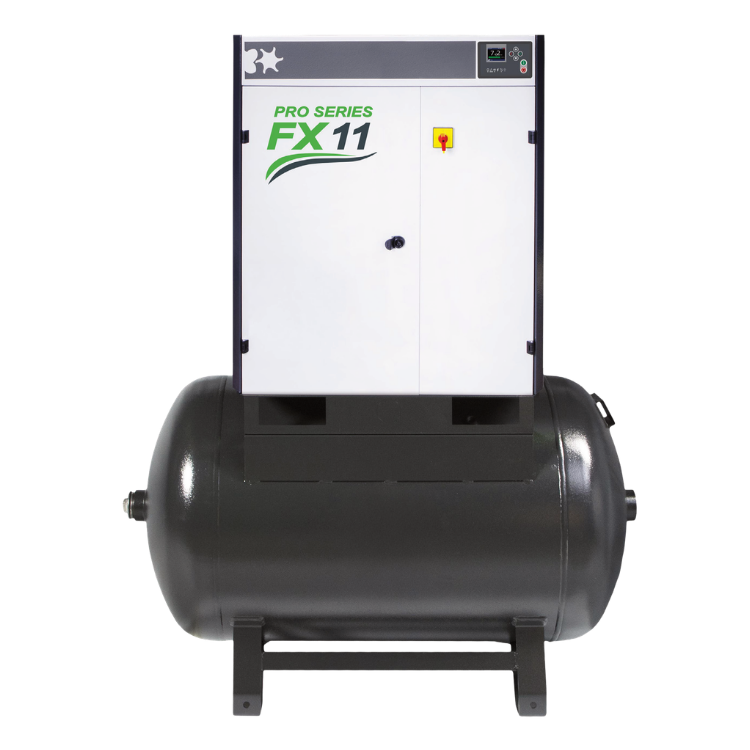

Avelair Pro Series FX11-RM Compressor

• Compressor type: fixed-speed rotary screw

• Motor power: 11 kW

• Electrical supply: three-phase

• Air delivery: 56 CFM at 10 bar

• Configuration: receiver mounted

• Air receiver capacity: 270 litres

• Air outlet connection: ¾ inch

• Starter: star-delta

• Condensate drainage: timed automatic receiver drain

• Dimensions (L × W × H): 1,184 × 606 × 1,574 mm

• Compressor and receiver weight: 255 kg

• Warranty: two years’ parts and 12 months’ labour

Air Treatment

• Separate refrigerant dryer

• Two-stage compressed air filtration

• Reduces moisture and airborne contaminants before air reaches the blasting machine
