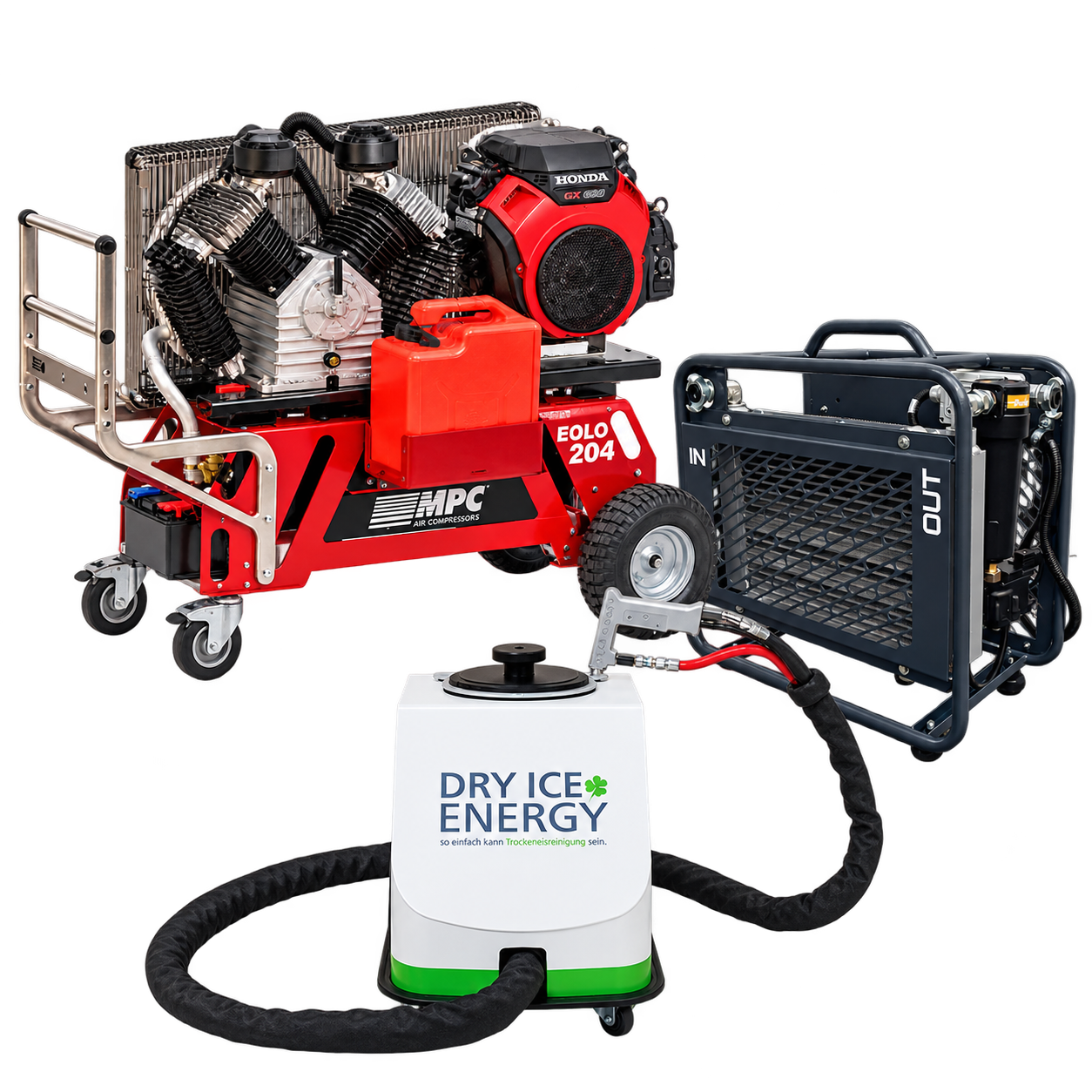

Champ Turbo & MPC EOLO 204 Dry Ice Blasting Package with Rotair Dry-Air Bag

• Three-part package combining dry ice cleaning, compressed air and air treatment

• Champ Turbo weighs just 17 kg

• Adjustable blasting pressure and dry ice dosing

• Honda GX630 petrol engine rated at 19 hp

• EOLO 204 portable wheel and handle kit included

• Rotair Dry-Air Bag external air-cooling and moisture-separation unit

• Dry-Air Bag rated for airflow up to 2,000 litres/minute

• No mains electricity required; Dry-Air Bag requires a suitable 12 V supply

• Dry ice cleaning without added water or cleaning chemicals

• UK advice, finance options and ongoing support through CoolBlast

• Dry Ice Energy Champ Turbo dry ice blasting machine

• MPC EOLO 204 petrol compressor

• Honda GX630 engine with electric starting system and battery

• Integrated 50-litre air receiver

• 23-litre fuel tank

• Portable compressor conversion kit, including wheels, extended handle and mounting supports

• Rotair Dry-Air Bag external air-treatment unit

• Blasting gun with 3 m blasting hose

• 7 m compressed air hose with safety couplings

• Standard blasting nozzle

• Pressure gauge and water filter

• Ice shovel

• Operating manuals

• Automotive detailing and engine bay cleaning

• Vehicle restoration

• Localised underbody and chassis cleaning

• Workshop machinery maintenance

• Injection mould and tooling cleaning

• Printing equipment

• Removal of suitable grease, oil and production residues

• General industrial maintenance

Dry Ice Energy Champ Turbo

• Operating pressure: 1–10 bar

• Air consumption: approximately 17–57 CFM, depending on nozzle and pressure

• Dry ice consumption: approximately 7–27 kg/hour

• Dry ice hopper capacity: 4.1 kg

• Pellet compatibility: dry ice pellets up to 2 mm

• Power: pneumatic operation; no electrical connection required

• Machine weight: 17 kg

• Dimensions (L × W × H): 530 × 370 × 470 mm

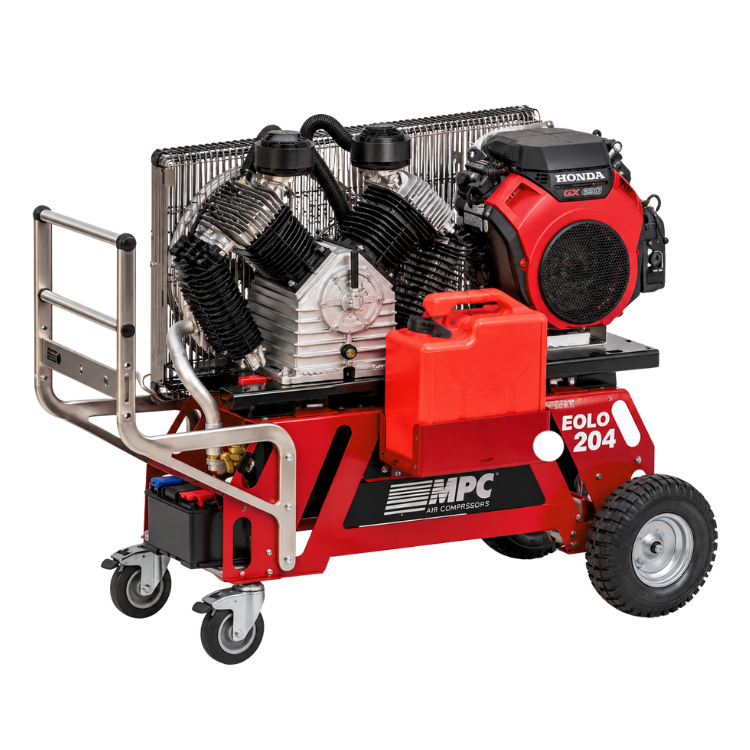

MPC EOLO 204 Petrol Compressor

• Compressor type: belt-driven piston

• Air intake capacity: 1,800 litres/minute, approximately 64 CFM

• Free air delivery at working pressure: not specified

• Maximum compressor pressure: 14 bar

• Engine: Honda GX630 petrol

• Engine power: 19 hp

• Starting: electric, with battery

• Receiver capacity: 50 litres

• Fuel tank capacity: 23 litres

• Air outlets: 3 × ½ inch

• Automatic engine speed regulation according to receiver pressure

• Base compressor weight: 245 kg, excluding portable conversion accessories

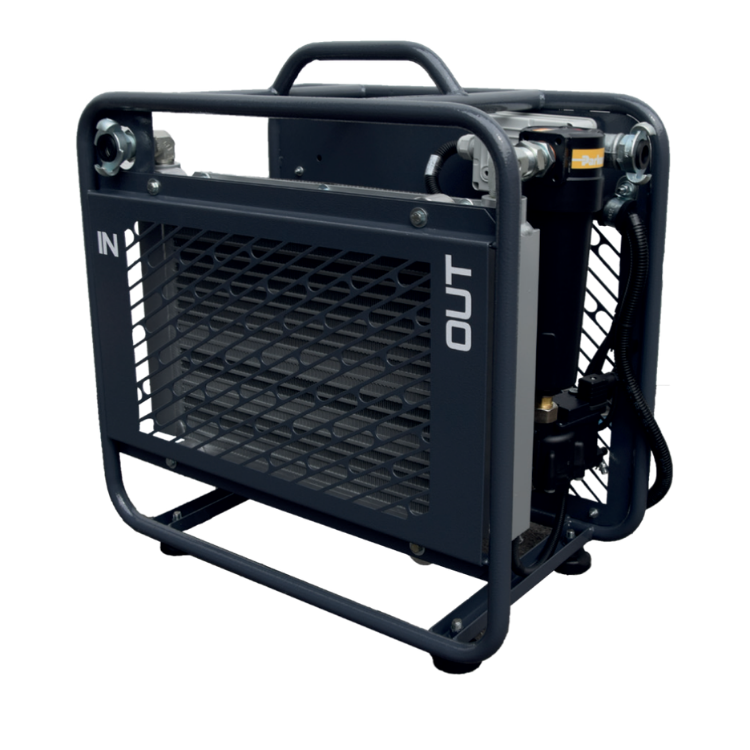

Rotair Dry-Air Bag

• Type: external compressed air-treatment unit

• Rated airflow: 2,000 litres/minute, approximately 71 CFM

• Maximum operating pressure: 16 bar

• Operating temperature range: 0–50°C

• Inlet and outlet connections: ¾-inch bayonet/claw couplings

• Power supply: 12 V

• Fan power consumption: 101 W

• Number of fans: one

• Weight: 20 kg

• Manufacturer’s stated residual oil content: ≤1 ppm
