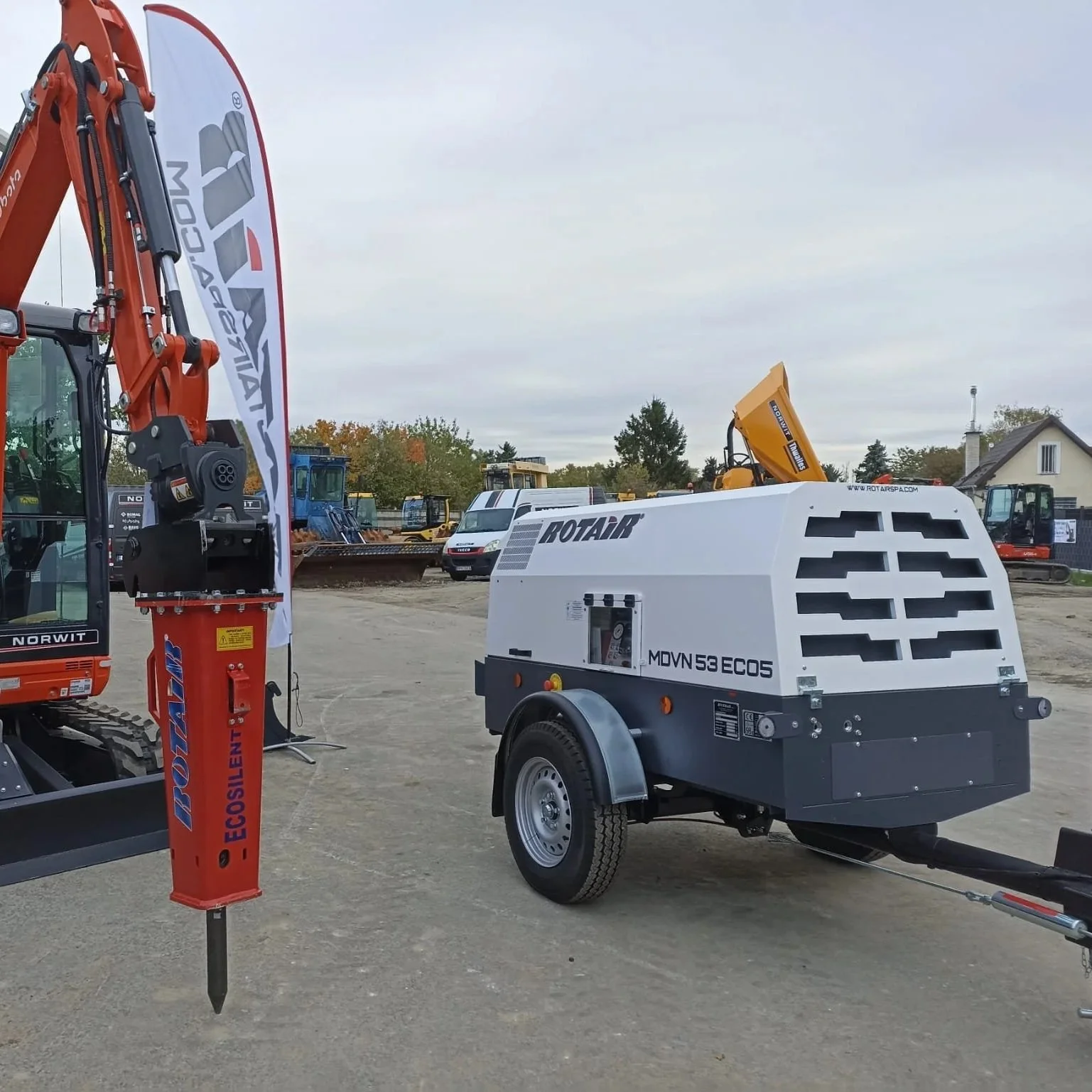

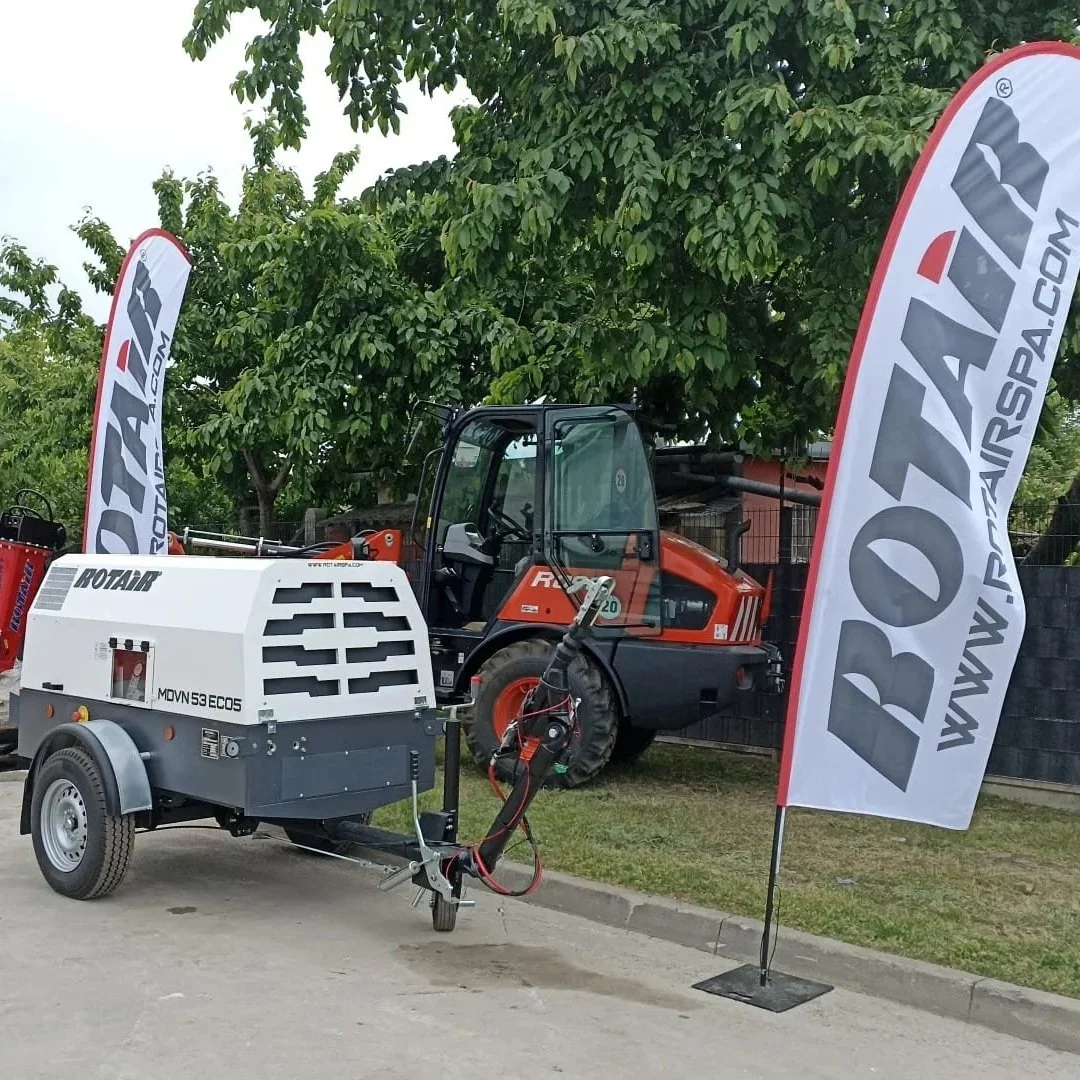

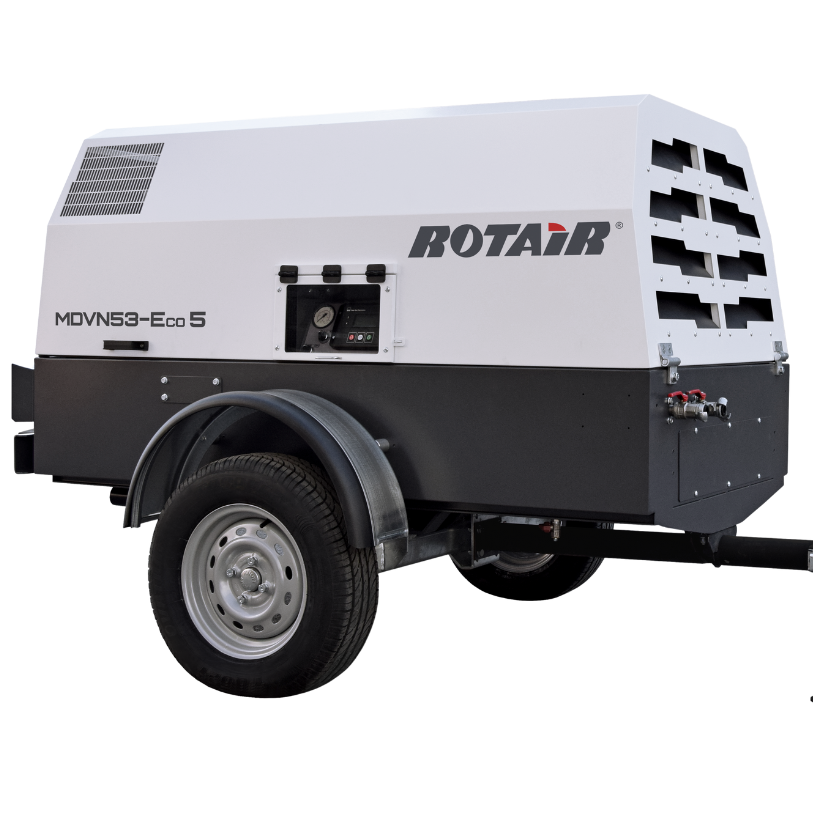

Rotair MDVN 53 Eco5 Mobile Diesel Air Compressor - 177 CFM

• Up to 177 CFM free air delivery

• Stage V Kohler diesel engine with DOC + DPF

• Direct-drive airend for maximum efficiency

• Electro-galvanised bodywork for long-term protection

• Intelligent Start/Stop system to prevent incorrect operation

• Exclusive pneumatic control system for automatic rev adjustment and fuel saving

• Oversized air/oil separation for cleaner air output

• Easy-access spin-on filters for rapid servicing

• Available with or without road brakes

• Rotair MDVN 53 Eco5 portable diesel compressor

• Kohler Stage V engine with DOC + DPF after-treatment

• Direct-drive airend for maximum efficiency

• Integrated pneumatic control system (automatic rev adjustment)

• Intelligent Start/Stop safety system

• Electro-galvanised chassis & body panels for long-term corrosion resistance

• Spin-on engine and compressor filters for quick maintenance

• Oversized air/oil separator for cleaner air delivery

• Single-stage compressor air filter + two-stage engine air filter

• Combined radiator (engine coolant + compressor oil cooling)

• Twin ¾” outlet valves

• Road-towable chassis (braked or unbraked, depending on your configuration)

• Battery & electrical system fitted as standard

• Operator control panel with hour meter, pressure gauge and mode controls

• Blasting

  • Heavy-duty sand blasting and shot blasting

  • Dustless blasting systems with aftercooler/moisture separation

  • Dry ice blasting support

• Construction & Utilities

  • Fibre optic cable blowing and jetting

  • Powering pneumatic tools, breakers, hammers and drills

  • Soil loosening with compressed air lances

  • Site cleaning and blow-out work

  • Spray painting and industrial coating systems

• Industrial & Maintenance

  • Large-scale industrial cleaning

  • General compressed air supply for workshops and site operations

  • Pipe clearing and utility maintenance

• Agriculture

  • Farm machinery blow-out and cleaning

  • Grain dryers, silos and store aeration

Compressor

• Free Air Delivery:
  • 177 CFM @ 7 bar
  • 175 CFM @ 10 bar
  • 132 CFM @ 12 bar

• Operating Pressure: 7–12 bar

• Drive: Direct drive

• Cooling: Air/Oil

• Outlets: 2 × ¾"

Engine

• Make/Model: Kohler KDI 1903 TCR (Stage V)

• Power: 36.5 kW (49.6 HP)

• Cylinders: 3-cylinder turbo diesel

• Cooling: Water cooled

• Fuel Tank: 88 L

• Fuel Use: 10.4 L/h (full load)

Weights

• 960 kg (unbraked)

• 1105 kg (braked)

• 970 kg (skid)

Operating Conditions

• Working Temp: –10°C to +45°C

• Max Altitude: 1800 m

• Oil in Air: 1–3 ppm
