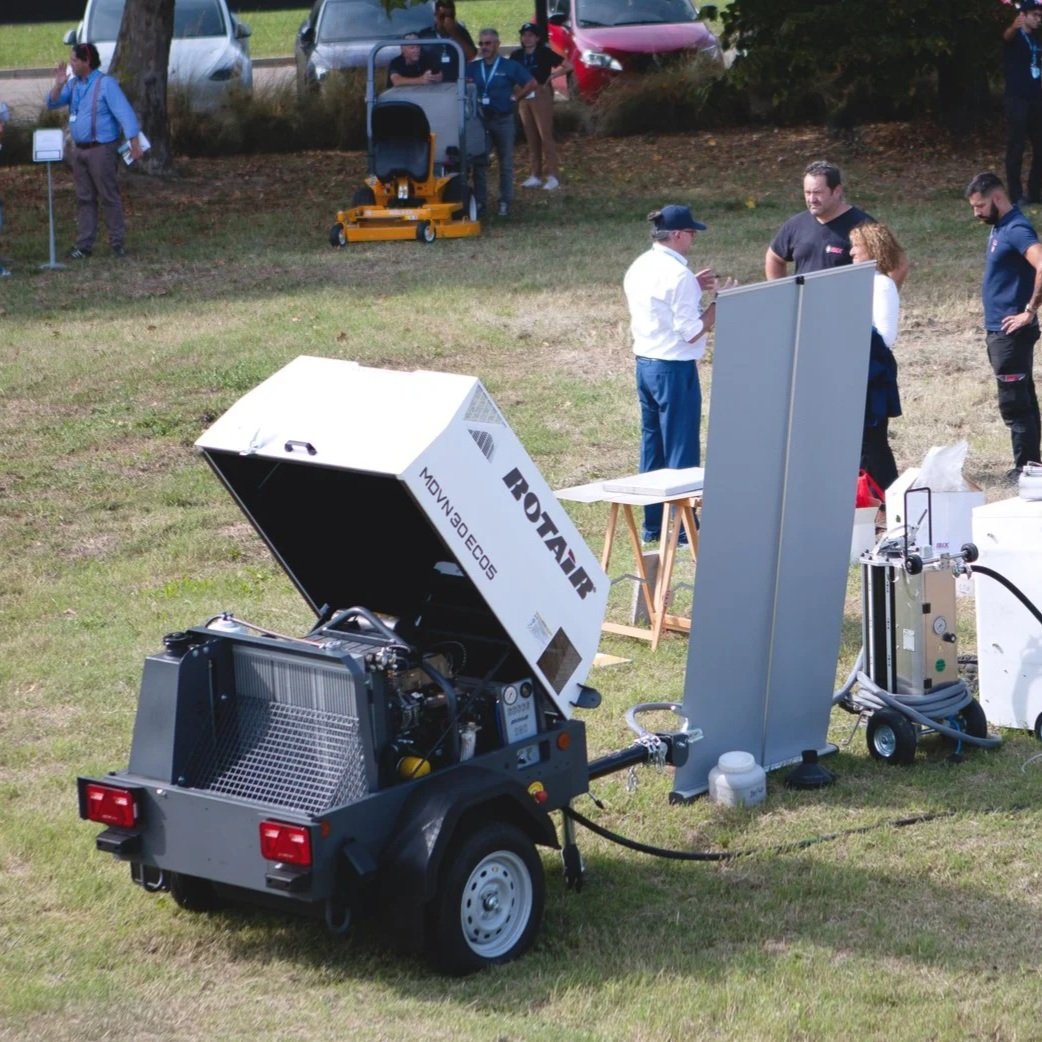

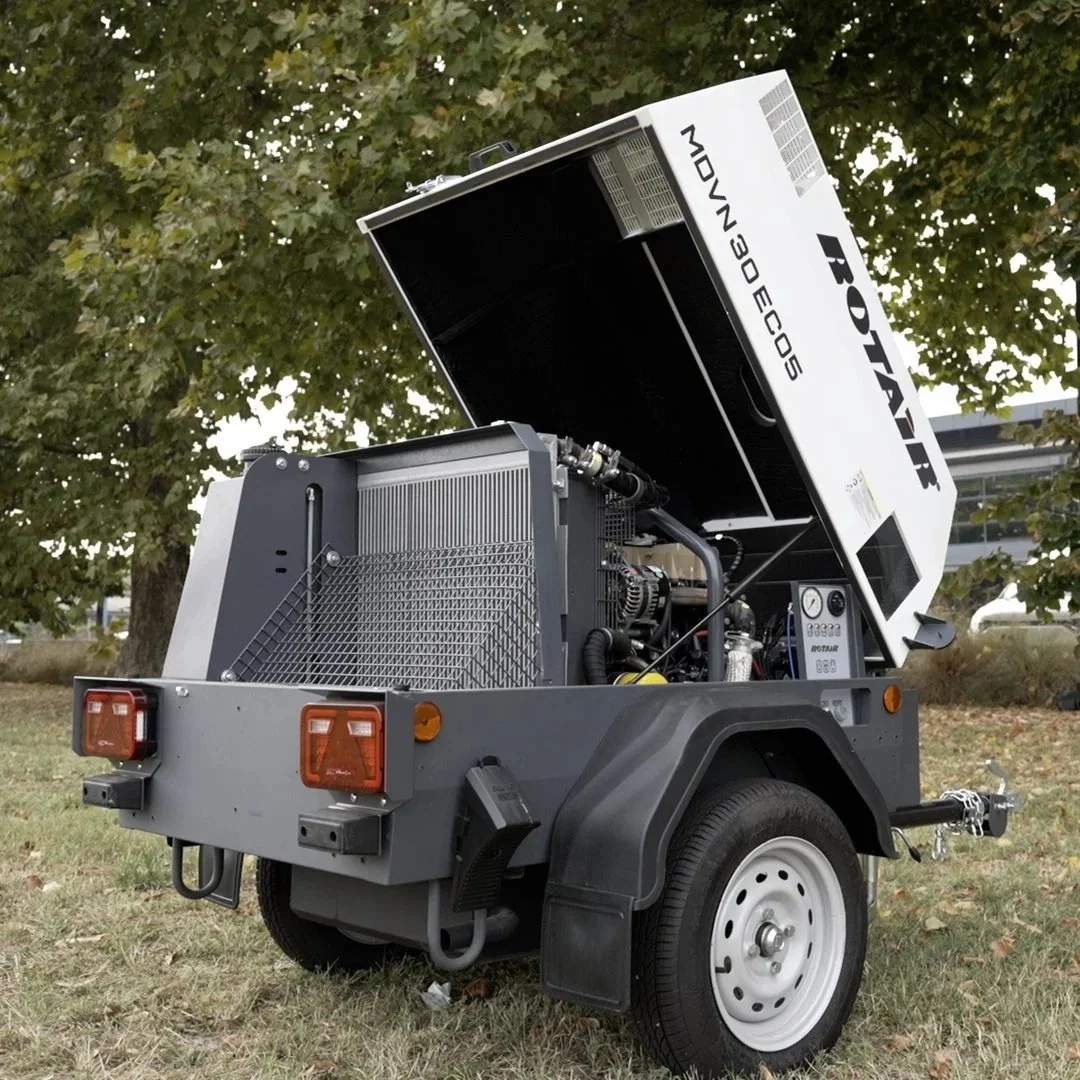

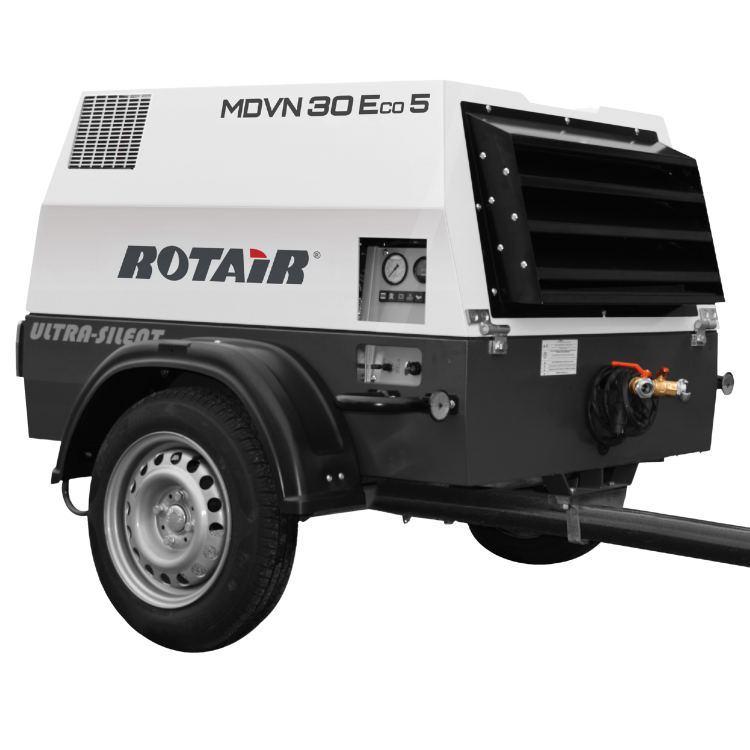

Rotair MDVN 30 Mobile Diesel Air Compressor - 104 CFM

• Up to 104 CFM free air delivery

• Stage V Kohler-based Rehlko engine

• Direct-drive airend for improved efficiency

• Low weight for easy towing and manoeuvring

• Electro-galvanised bodywork for long-lasting corrosion protection

• Intelligent Start/Stop system to prevent incorrect operation

• Automatic pneumatic control system for fuel-efficient running

• Oversized air/oil separation for cleaner air

• Quick-access spin-on filters

• Rotair MDVN 30 Eco5 portable compressor

• Rehlko (Kohler) Stage V engine

• Direct-drive compressor airend

• Intelligent Start/Stop system

• Pneumatic engine speed control

• Electro-galvanised body panels & chassis

• Oversized air/oil separator

• Spin-on engine & compressor filters

• Single-stage compressor air filter

• Combined engine coolant & compressor oil radiator

• Twin ¾” outlet valves

• Towable chassis (braked or unbraked)

• Operator control panel with gauges & hour meter

• Site operations in emission-restricted zones

• Urban construction and utilities

• Pneumatic tools and blasting systems

• Flexible hire fleets

Compressor

• Free Air Delivery:
  • 104 CFM @ 7 bar
  • 67 CFM @ 10 bar
  • 49 CFM @ 12 bar

• Operating Pressure: 7–12 bar

• Drive: Belt-driven (XPZ)

• Cooling: Air/Oil

• Outlets: 2 × ¾"

Engine

• Make/Model: Rehlko (Kohler) KSD1403NA (Stage V)

• Power: 18.4 kW (25 HP)

• Cylinders: 3-cylinder

• Cooling: Water cooled

Weights

• 590 kg (unbraked)

• 650 kg (braked)

• 530 kg (skid)

Operating Conditions

• Working Temp: –10°C to +48°C

• Max Altitude: 1800 m

• Oil in Air: 1–3 ppm
