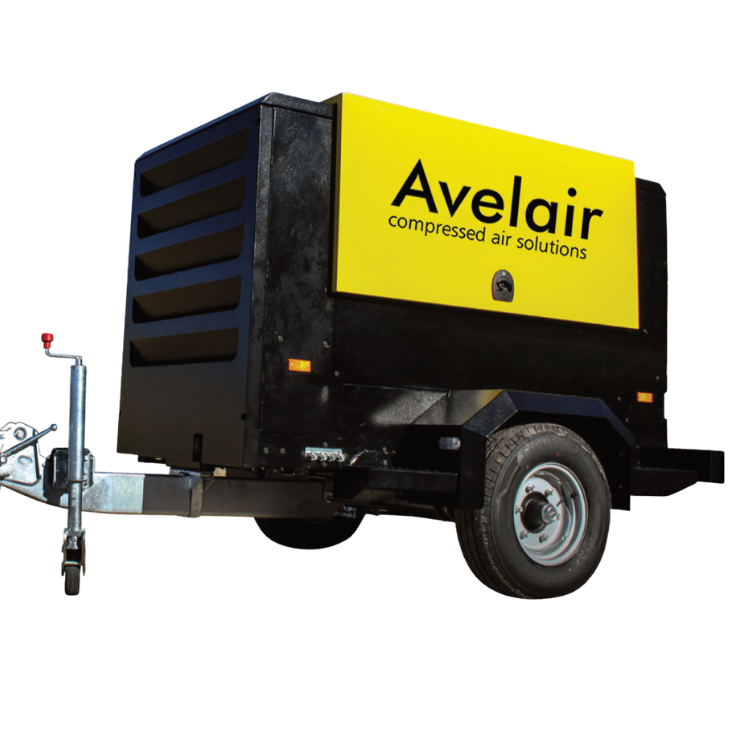

Avelair AP11000 Mobile Diesel Air Compressor – 370 CFM

• Free air delivery: up to 370 CFM (10.5 m³/min)

• Multiple working pressures: 7, 8.5, 12 and 14 bar

• Kubota V3800 Stage V diesel engine (129.3 hp)

• Towable braked-axle and stationary configurations available

• Optional aftercooler for reduced compressed air temperature

• 170-litre diesel fuel tank

• Fuel consumption: 21 l/h at full load

• Electronic controller with maintenance tracking and automatic shutdown

• Progressive airflow regulation from idle to full load

• Electric start with reduced-noise preheating

• Soundproofed steel enclosure with accessible service doors

• Heavy-duty design with anti-vibration engine and compressor mounts

• Multiple compressed air outlets for flexible connections

• 1,900 kg stationary weight; 2,300 kg towable weight

• Avelair AP11000 diesel compressor (selected configuration)

• Kubota Stage V diesel engine

• Electric start system

• Electronic controller with IP67 protection

• Integrated safety systems monitoring temperature, oil pressure and cooling

• Battery isolation switch

• Soundproofed steel enclosure

• Central lifting point for handling

• Multiple compressed air outlets (1 × 1½" and 3 × ¾")

• Warranty

  • Standard cover: 1 year on parts and on-site labour.

  • Extended cover: An additional 4 years on the engine, airend, coolers, pressure vessel and controller, giving 5 years' total cover on these components, subject to genuine service kits and oil being used.

• Professional sandblasting and abrasive blasting

• Heavy-duty surface preparation and coating removal

• Industrial cleaning and maintenance

• Steelwork and structural preparation

• Marine and shipyard blasting

• Construction and civil engineering

• High-demand pneumatic tools and equipment

• Industrial applications requiring high airflow and pressure

Free Air Delivery

• 10.5 m³/min (370 CFM) at 7 bar

• 10.5 m³/min (370 CFM) at 8.5 bar

• 10.5 m³/min (370 CFM) at 12 bar

• Up to 10.5 m³/min (370 CFM) at 14 bar – manufacturer data also lists 9.7 m³/min (342 CFM) at an unspecified fifth operating point

Pressure – 7 / 8.5 / 12 / 14 bar

Engine – Kubota V3800-TIE5H Stage V, 96.4 kW (129.3 hp), 4-cylinder

Fuel Tank – 170 litres

AdBlue Tank – 16.5 litres

Fuel Consumption – 21 l/h at full load

Cooling – Air radiator with engine-mounted fan

Noise Level – 99 dB(A) LWA

Compressed Air Outlets – 1 × 1½" and 3 × ¾"

Weight – 1,900 kg (stationary), 2,300 kg (towable)

Dimensions – 2252 × 1218 × 1640 mm (stationary)

Towable Dimensions – 4350 × 1788 × 1904 mm (braked axle)
