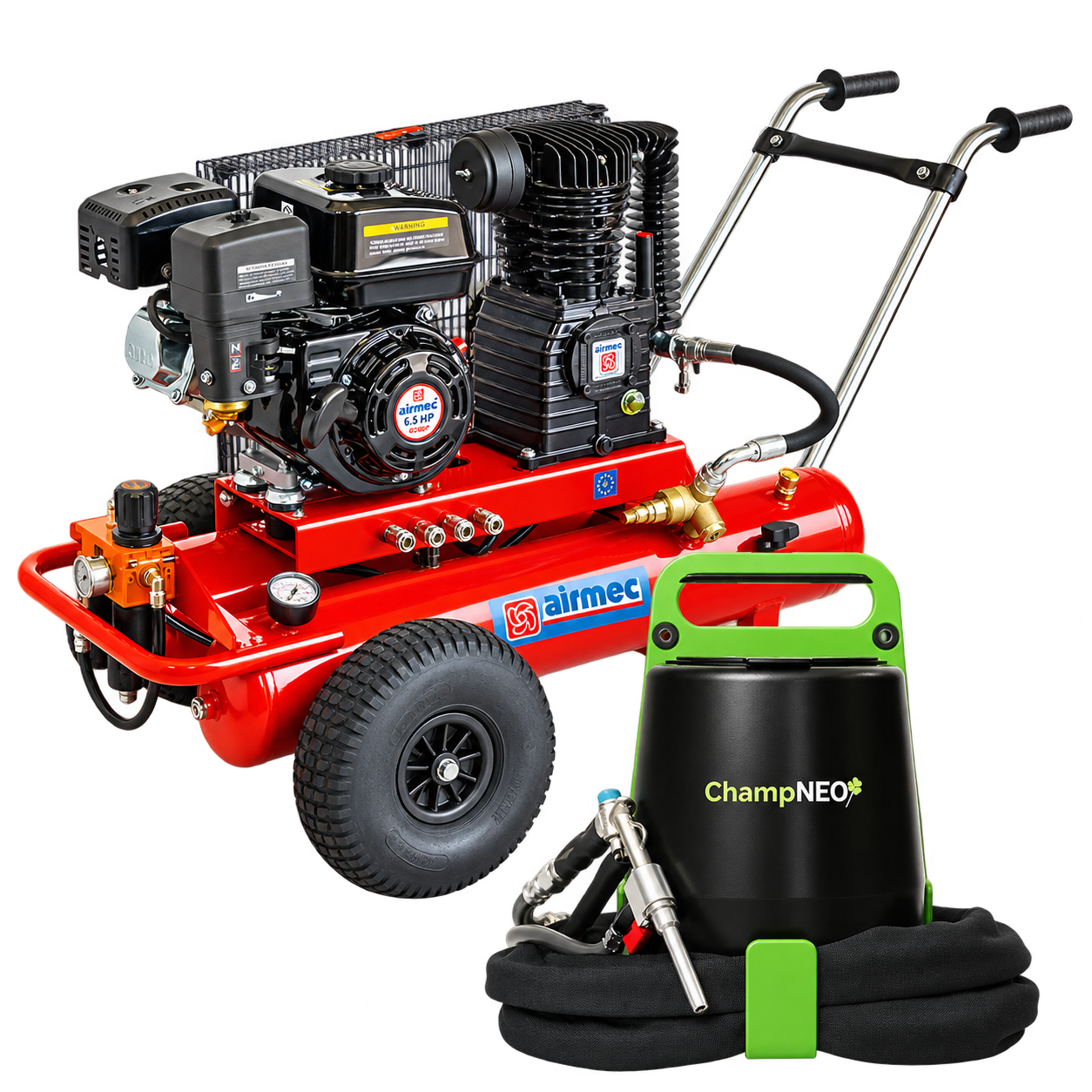

Champ Neo & Airmec TTS 3465/550 Dry Ice Blasting Package

• Compact dry ice blasting machine paired with a portable petrol compressor

• Lightweight 6.5 kg Champ Neo

• Low air demand: approximately 5.3–8.8 CFM at 5 bar

• No mains electricity required

• Cleans using dry ice without adding water or cleaning chemicals

• Compatible with 1.5 mm and 3 mm dry ice pellets

• Airmec 6.5 hp four-stroke petrol engine

• Twin air receivers with 34 litres’ combined capacity

• Pneumatic wheels and handling frame for movement around site

• UK advice, finance options and ongoing support through CoolBlast

• Dry Ice Energy Champ Neo dry ice blasting machine

• Airmec TTS 3465/550 portable petrol compressor

• Champ Neo blasting gun

• 2.5 m working hose

• Round blasting nozzle

• Quick-connect fittings

• Ice shovel

• Operating manuals

Compressed air supply hose and any additional filtration or moisture-control equipment can be specified to suit your setup.

• Vehicle detailing

• Light engine bay cleaning

• Motorcycle and bicycle components

• Rubber seals and suitable trim

• Small machinery and workshop components

• Tools and maintenance equipment

• Localised cleaning on suitable boat surfaces

• Light grease, dirt and residue removal

Dry Ice Energy Champ Neo

• Compressed air demand: 150–250 litres/minute at 5 bar, approximately 5.3–8.8 CFM

• Recommended supply: approximately 250 litres/minute at 5 bar

• Maximum inlet pressure: 10 bar

• Manufacturer’s stated continuous blasting pressure: 6 bar

• Dry ice consumption: approximately 6–15 kg/hour, depending on pressure

• Dry ice filling capacity: approximately 2 kg

• Pellet compatibility: 1.5 mm and 3 mm

• Power: pneumatic operation; no electrical connection required

• Air connection: European standard NW 7.2 mm

• Machine weight: 6.5 kg

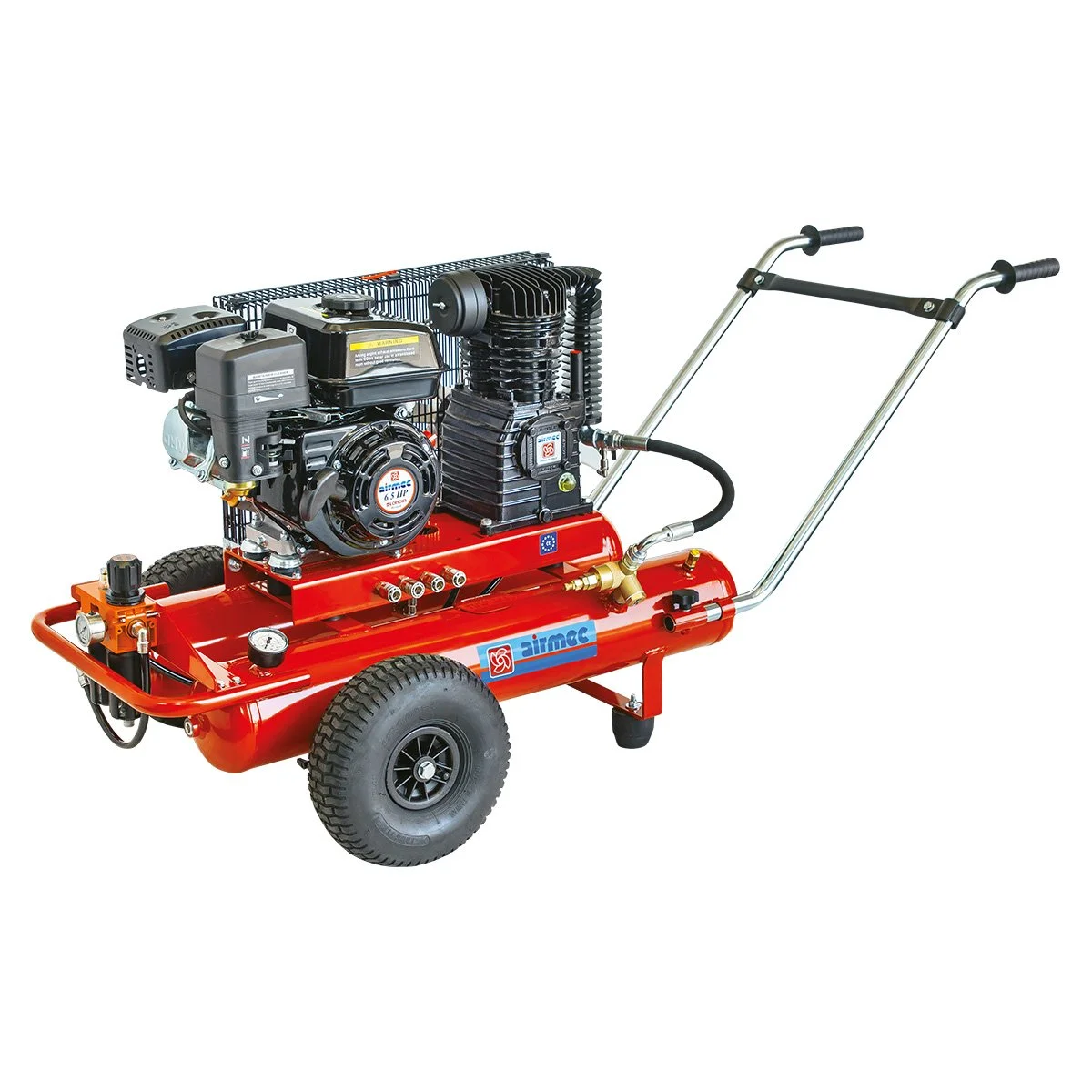

Airmec TTS 3465/550 Petrol Compressor

• Compressor type: single-stage, twin-cylinder piston

• Compressor head: K18/C

• Published airflow rating: 550 litres/minute, approximately 19.4 CFM

• Maximum pressure: 11 bar

• Engine: four-stroke petrol

• Engine power: 6.5 hp

• Starting: recoil pull start

• Receiver capacity: 2 × 17 litres, 34 litres total

• Compressor pump speed: 1,350 rpm

• Cylinder construction: cast iron

• Weight: 91 kg

• Dimensions (L × W × H): 1,150 × 751 × 875 mm

Airmec TTS 3465/550 Data Sheet
